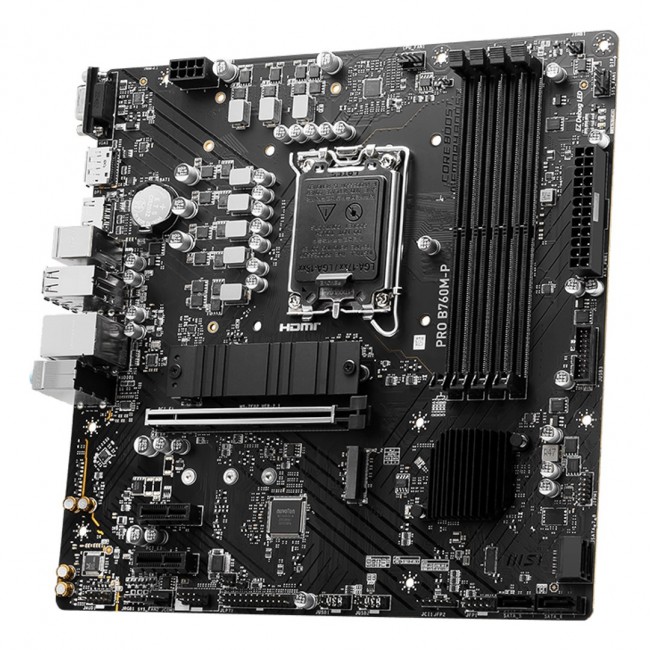

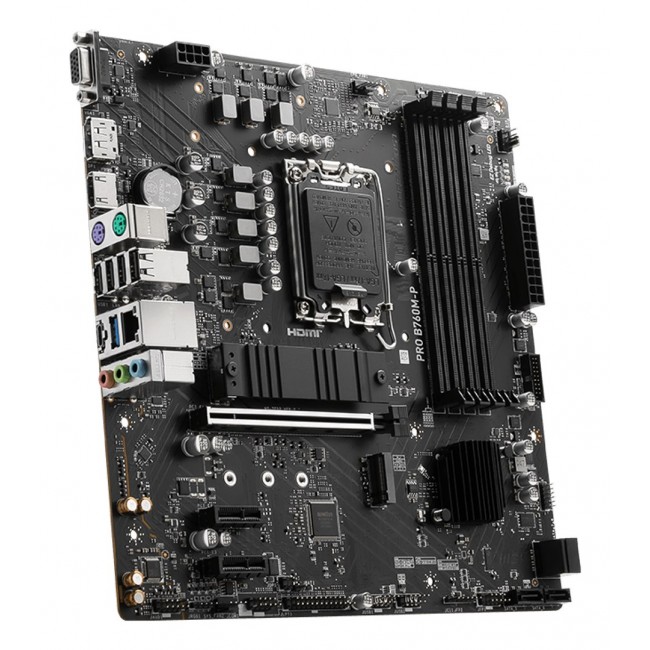

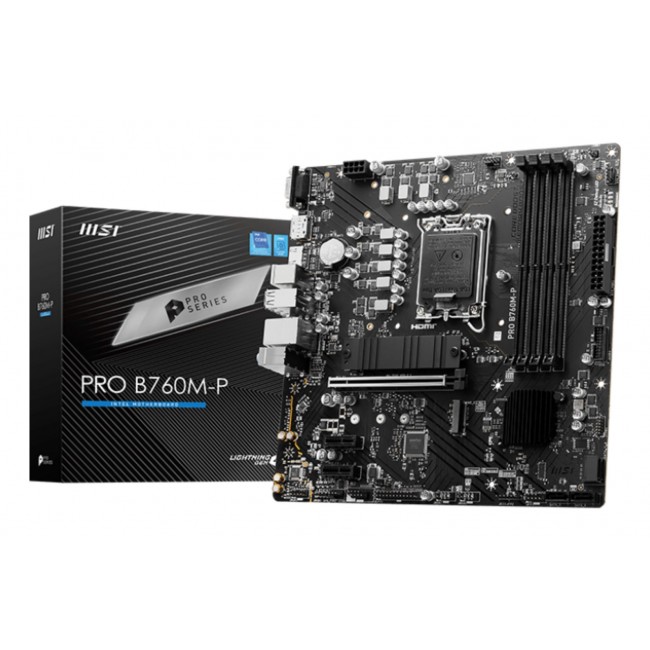

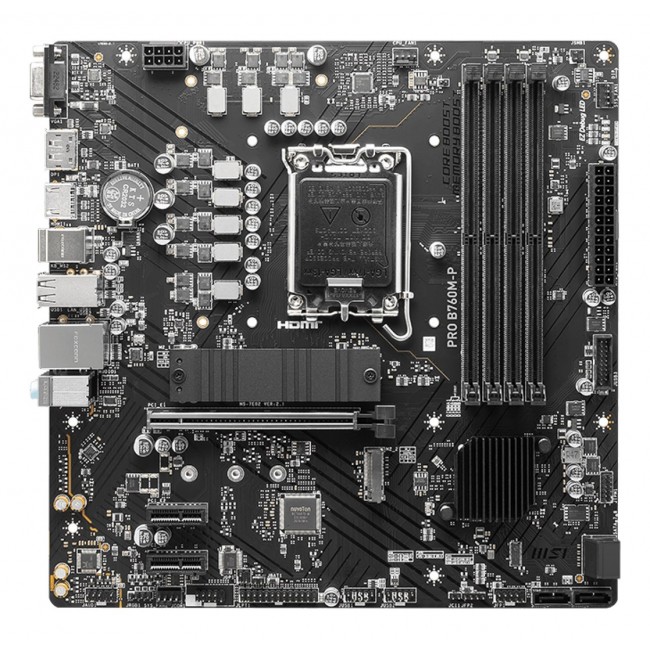

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
- Διαθεσιμότητα: Διαθέσιμο από 4-8 ημέρες
- Κατασκευαστής: MSI
- Κωδικός: PLYMIS1700050
- Βάρος(kg): 0.94kg
- Διαστάσεις Συσκευασίας: 5.70cm x 30.00cm x 28.00cm
- EAN: 4711377086578
138,80€
Χωρίς ΦΠΑ: 111,94€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Pentium Gold Intel Celeron |
| CPU fan connector | Yes |
| Depth | 243.8 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G036M |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Maximum internal memory | 192 GB |
| Microphone in | Yes |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Number of HDDs supported | 4 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Parallel connector | Yes |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 2 |
| RAID levels | 1 10 5 0 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speeds | 6400 6800 5000 5800 5400 6000 6200 6600 5600 MHz 4800 5200 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. Before starting any maintenance or installation, disconnect the product from the power supply. Do not dispose of the motherboard in the ordinary rubbish bin the product requires specia |
| Wi-Fi | No |
| Width | 243.8 mm |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
