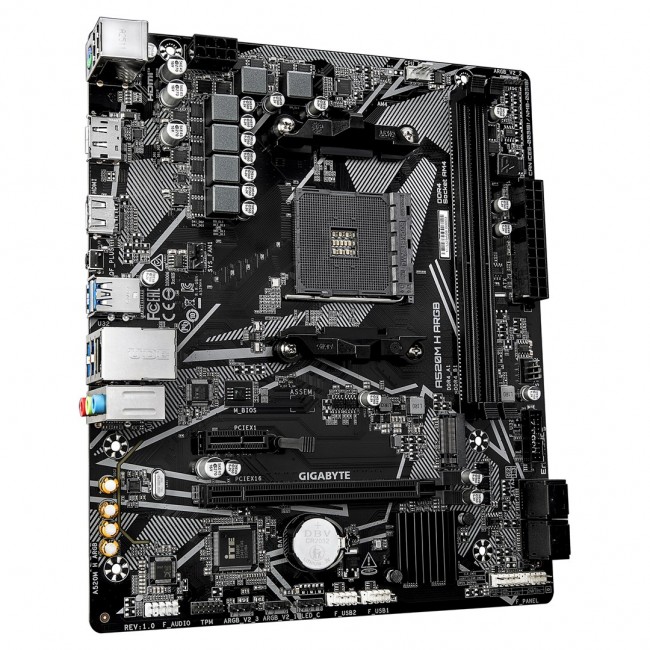

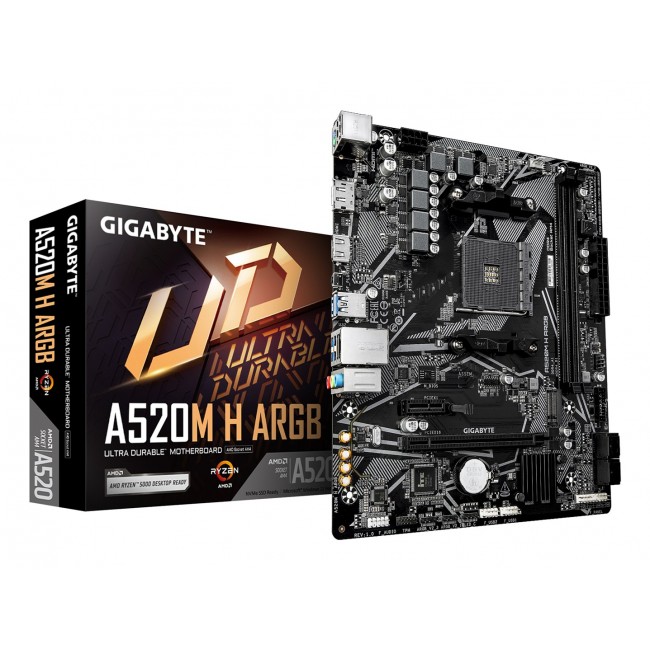

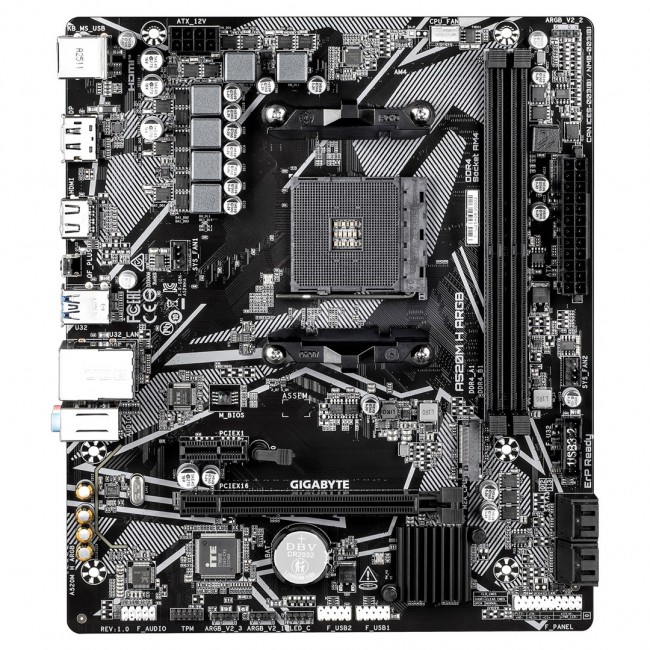

GIGABYTE A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, 1 GbE LAN, USB 3.2 Gen 1
- Διαθεσιμότητα: Διαθέσιμο από 10 έως 30 ημέρες
- Κατασκευαστής: Gigabyte
- Κωδικός: WLONONWCRTAM8
- Βάρος(kg): 0.80kg
- Διαστάσεις Συσκευασίας: 19.00cm x 5.50cm x 18.30cm
- EAN: 4719331879822
100,67€
Χωρίς ΦΠΑ: 81,19€
ΤΗΛ.ΕΞΥΠΗΡΕΤΗΣΗΣ 210-3003451
100 % Ασφάλεια αγορών
Θα παραλάβεις σίγουρα την παραγγελία σου. Διαφορετικά, σου επιστρέφουμε τα χρήματά σου.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 2280 |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security (OEM version) |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 3000 Series AMD Ryzen PRO 4000 Series AMD Ryzen 4000 Series AMD Ryzen PRO 3000 Series AMD Ryzen 5000 Series AMD Ryzen PRO 5000 Series |
| Component for | PC |
| Cooling type | Passive |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 198 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Guarantee | G024M |
| HDCP | Yes |
| HDCP version | 2.3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 64 GB |
| Maximum internal memory per slot | 32 GB |
| Maximum resolution | 5120 x 2880 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 772 g |
| Package width | 265 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Voltage Fan Temperature |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Product colour | Dark brown |
| Products per shipping (inner) case | 1 pc(s) |
| PS/2 ports quantity | 1 |
| RAID levels | 0 10 1 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Screws included | Yes |
| Supported memory clock speed (max) | 5100 MHz |
| Supported memory clock speeds | 5100 MHz 2133 MHz 3200 4266 MHz 2933 3600 3400 3866 4133 4000 4800 MHz 2667 3733 4400 MHz 4600 2400 3466 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Warranty period | 3 year(s) |
| Weight | 700 g |
| Wi-Fi | No |
| Width | 233 mm |
| Windows operating systems supported | Windows 10 x64 Windows 11 x64 |
